Semi-automatisk maskin för produktion av lådor, brickor, skiljeväggar och utskurna delar med möjligheten för ytterligare stansning (t. ex. handhål) och flexotryck. Den kan även enkelt skära och biga en kartong, både korsvist och på längden.

Purpose of the machine

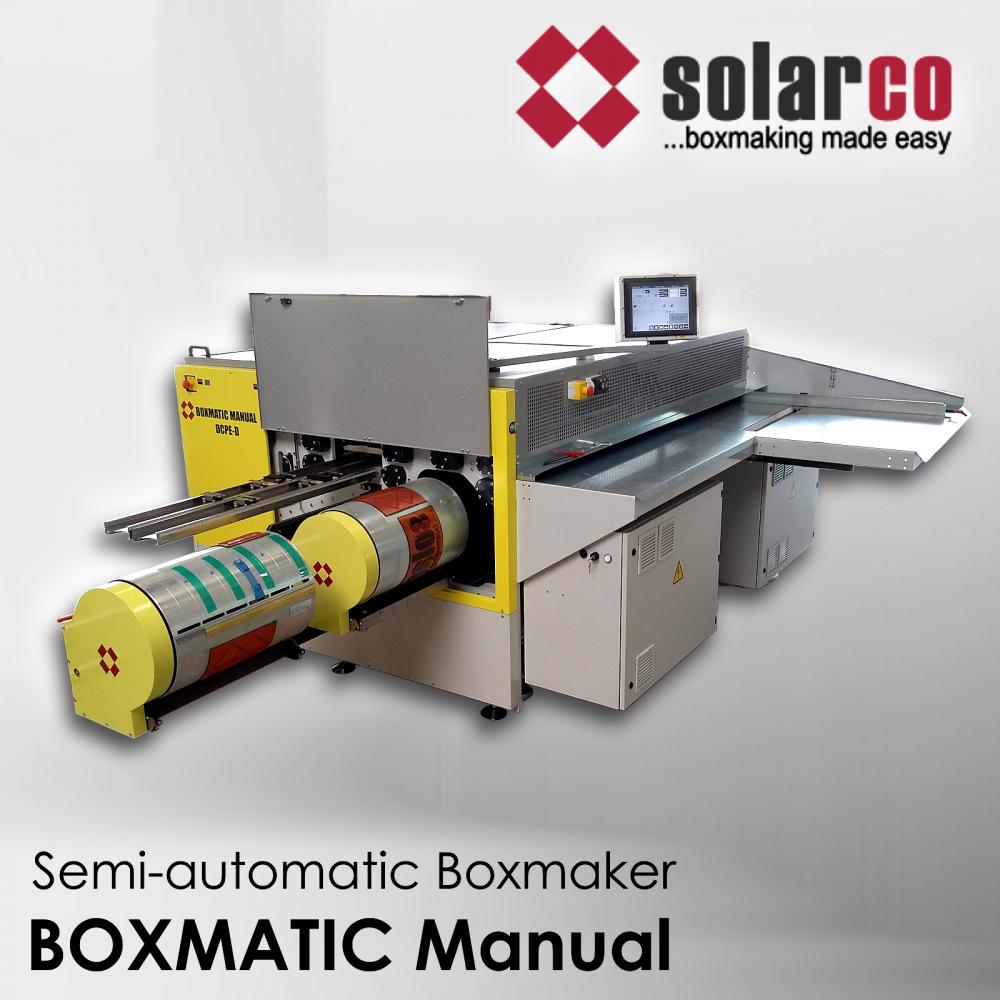

This semi-automatic machine from BOXMATIC Manual range for production of corrugated boxes, trays, partitions and cut-out parts with the option of additional die-cut (e.g. for handholes) and flexo print (e.g. for company or RESY logo) can also simply cut and crease a cardboard both crosswise and lengthwise. The production of basic slotted boards (especially series FEFCO 02xx, FEFCO 03xx, etc…) is possible from single-wall and double-wall corrugated boards. Under certain circumstances, it is also possible to process tri-wall.

Description

Main parts of the machine – the machine itself, manual loading table. On the output, it can be equipped with uploading waste bin. The machine itself then processes cardboard and can perform the following operations:

  • slotting, crosswise and lengthwise creasing
  • crosswise cutting with the option to simultaneously cut-out flaps
  • lengthwise cutting
  • supplementary die-cut
  • flexo module – large format print

Based on customer´s requirements, the machine can be also equipped with two or three-out production and up to three smart flexo print units. Machine programming and parameter settings are quick and easy thanks to PLC touch panel. Only basic information must be inserted, the rest is calculated by the program itself. Based on the data provided by the program, it is very easy to manually adjust the position of the printing units, die-cut forms, knives, etc. This allows the machine operator to quickly and easily adjust the machine for another job within a few minutes using just one allen wrench.

broschyr

Models:

  • BOXMATIC Manual DCFM-D with flexo modul Flexomatic – double die-cut
  • BOXMATIC Manual DDC-DD – two double die-cut
  • BOXMATIC Manual DC-D – one doubled die-cut (2x100mm)

FEFCO types

  • 0200, 0201, 0202, 0203, 0204, 0205, 0206, 0208, 0209, 0214, 0228, 0229, 0230, 0231
  • 0300, 0301, 0302, 0306, 0310, 0311, 0312, 0313, 0320, 0325, 0331
  • 0400, 0401, 0402, 0403, 0404, 0405, 0406, 0409, 0410, 0411, 0412, 0413, 0442, 0452, 0453, 0454, 0455, 0456, 0458
  • 0501, 0502, 0503, 0504, 0505, 0507, 0509, 0510, 0511, 0512
  • 0601, 0602, 0605, 0606, 0607, 0608, 0610, 0615, 0616, 0620, 0621
  • range 09xx
  • and many individual constructions
